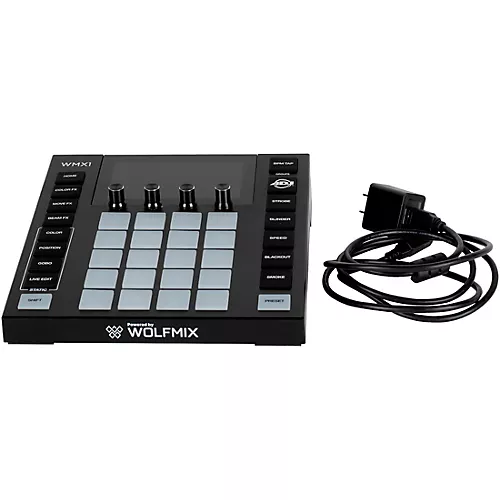

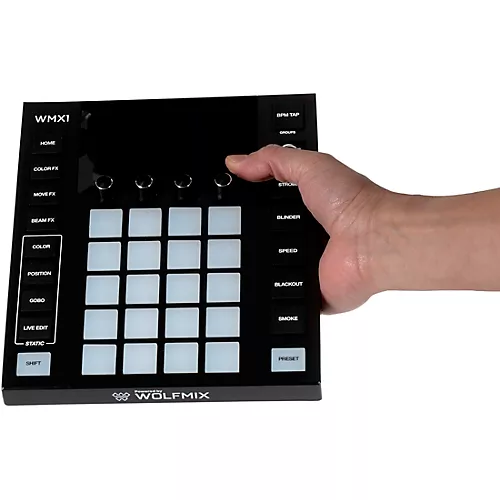

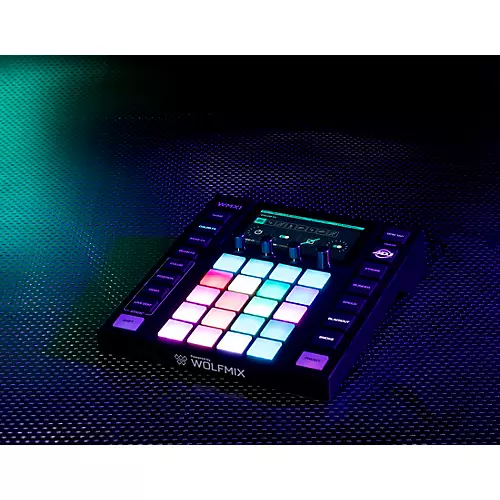

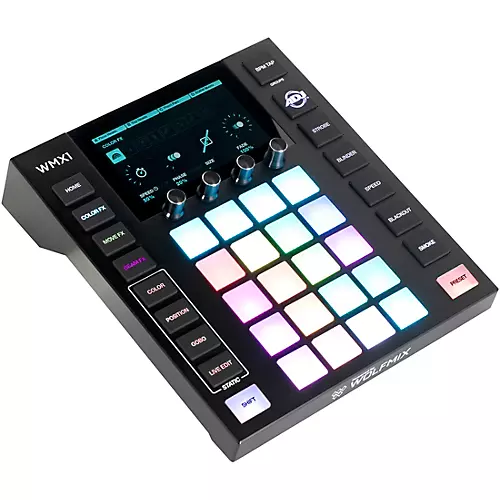

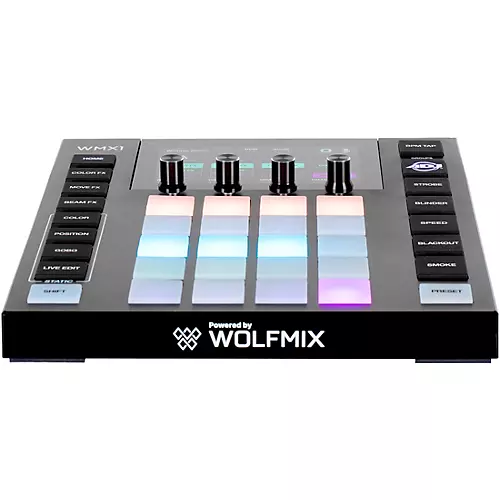

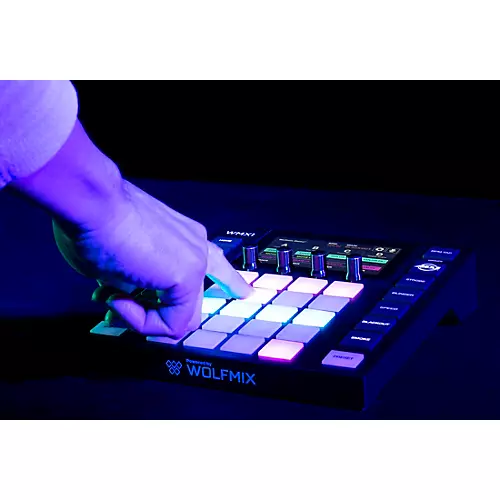

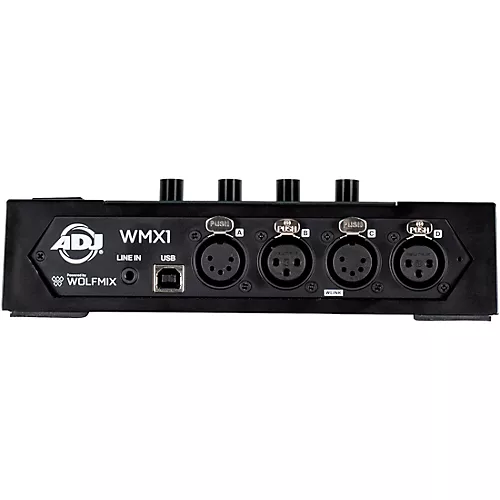

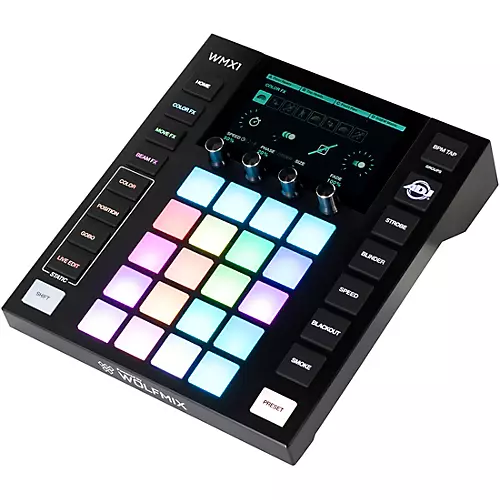

American DJ WMX1 Wolfmix Standalone Lighting Control System

Offering a unique hands-on interface for creative lighting control, the American DJ WMX1 is a powerful and compact standalone DMX controller. Designed for creating high-impact light shows on the fly without a computer, it features an intuitive workflow, powerful internal FX engine and tactile controls that make it easy for anyone to take control of a DMX lighting rig comprised of multiple fixture types. Setup of the WMX1 is quick and straightforward, with a menu interface on the 4.3" capacitive touch TFT screen allowing easy selection, addressing and grouping of fixtures. 3,500+ fixture profiles are included on the controller itself, with more than 15,000 accessible through the supporting WTOOLS app. The WMX1 also features a Fixture Builder, for creating custom profiles or for use with old or obscure fixtures, as well as a Fixture Calibration tool, which allows limiting of the area covered by moving heads.Once configured, the system allows independent control of up to eight groups of fixtures (four accessible via a Shift key), with 37 backlit silicone buttons and four rotary encoders allowing three different FX engines (Color, Move and Beam) to be easily triggered and customized independently for each group. The controller also features separate dedicated buttons for Strobe, Blinder, Speed, Blackout and Smoke. The WMX1 features four DMX universes and four output sockets (two 5-pin and two 3-pin) with the ability to map any universe to any output, allowing the unit to also serve as a DMX splitter. Out of the box the system supports a single DMX universe (output via all four sockets), while three additional universes are available as upgrades through the WTOOLS app. It also features both an internal microphone and 3.5mm jack line input socket for automated BPM detection, as well as a button that allows the BPM to be ‘tapped in�?manually. A Color Picker interface on the screen, which allows easy selection of just the right hue, can be used both for RGBW and RGBWA+UV LED fixtures. Other useful features include automatic matching of similar GOBOs across different fixture types, Fixture FLIP function (for reversing beam order), Fixture SPLIT function (for splitting up multi-FX bars) and Auto-recovery of the active project (no manual saving needed). Despite its low weight and compact dimensions, the WMX1 is extremely robust. Inside its tough ABS plastic shell, the unit features a powder-coated steel base plate and reinforced back plate. Its 220Mhz CPU with ARM core and 8MB RAM / 16MB flash memory allow for extremely complex effects to be layered and run independently across multiple groups all in real time.
